PTC has developed an in-house technology for the production of Titanium Powder for all alloy grades.
PTC are accredited to ISO 9001:2015 and carry many other approvals in our wider business. We are working towards new standards and always strive to deliver the finest quality possible, with full traceability and certification available.
Our technical team are always on hand to support your queries regarding the quality of our products and in conjunction with our foundry business, we export products and materials all across the globe, in particular Europe and North America.
| Grade | N Max | C Max | H Max | Fe Max | O Max | Other Elements (Total) Max | Mesh Size |
|---|---|---|---|---|---|---|---|
| PTCC2-60 | 0.05 | 0.10 | 0.015 | 0.2 | 0.4 | 0.40 | -60mesh (250µm) |
| PTCC2-80 | 0.05 | 0.10 | 0.015 | 0.2 | 0.4 | 0.40 | -80mesh (180µm) |
| PTCC2-100 | 0.05 | 0.10 | 0.015 | 0.2 | 0.4 | 0.40 | -100mesh (150µm) |
| PTCC2-200 | 0.05 | 0.10 | 0.015 | 0.2 | 0.4 | 0.40 | -200mesh (75µm) |
| PTCC2-325 | 0.05 | 0.10 | 0.015 | 0.2 | 0.4 | 0.40 | -325mesh (45µm) |
| PTCC2-400 | 0.05 | 0.10 | 0.015 | 0.2 | 0.4 | 0.40 | -400mesh (38µm) |
| PTCC5-60 | 0.05 | 0.10 | 0.015 | 0.40 | 0.25 | 6% Al—4% V | -60mesh (250µm) |
| PTCC5-80 | 0.05 | 0.10 | 0.015 | 0.40 | 0.25 | 6% Al—4% V | -80mesh (180µm) |
| PTCC5-100 | 0.05 | 0.10 | 0.015 | 0.40 | 0.25 | 6% Al—4% V | -100mesh (150µm) |
| PTCC5-200 | 0.05 | 0.10 | 0.015 | 0.40 | 0.25 | 6% Al—4% V | -200mesh (75µm) |
| PTCC5-325 | 0.05 | 0.10 | 0.015 | 0.40 | 0.25 | 6% Al—4% V | -325mesh (45µm) |
| PTCC5-400 | 0.05 | 0.10 | 0.015 | 0.40 | 0.25 | 6% Al—4% V | -400mesh (38µm) |

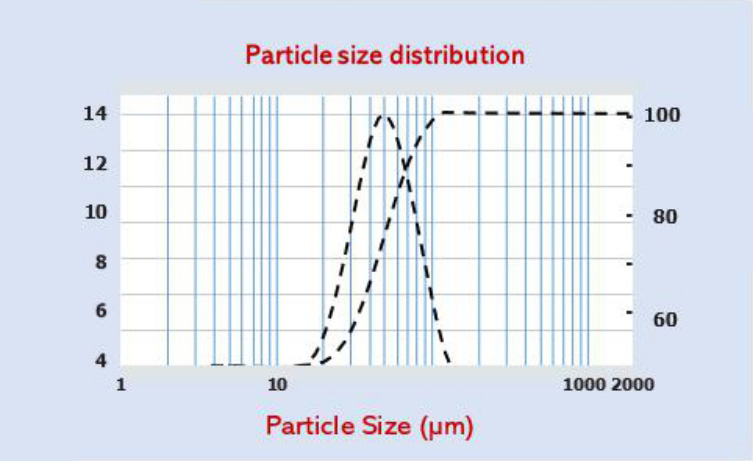

This example particle size distribution chart shows the Particle Size and Mesh size in relation to Volume.
